  • MT-MT AOC Assembly

    The passive optical interconnection jumper developed by adtek can be used in qsfp AOC, qsfp28 AOC, qsfp-dd AOC, micro qsfp AOC, CXP AOC, CFP AOC, CDFP AOC and any parallel optical transceiver module AOC.

    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.00KG
Description

The passive optical interconnection jumper developed by adtek can be used in qsfp AOC, qsfp28 AOC, qsfp-dd AOC, micro qsfp AOC, CXP AOC, CFP AOC, CDFP AOC and any parallel optical transceiver module AOC.

MT-MT AOC Assembly


OVERVIEW

Compatible with gr-1435 and gr-1221

Transmission mode: multi-channel parallel optical connection

Support: 40g (4x10g), 100g (4x25g), 4x32g, 200g (8x25g), 400G(8x40g), 800g (8x100g)

Coupling mode: passive coupling between MT and MT at 0 ° and 8 ° through guide pin

Insertion loss return loss parameters: MT insertion loss ≤ 0.60db, typical insertion loss 0.20db, MT return loss ≥ 20dB

Applicable environment: - 40 ℃ ~ + 85 ℃












Application Environment

Passive optical interconnection jumper can be used in qsfp AOC, qsfp28 AOC, qsfp-dd AOC, micro qsfp AOC, CXP AOC, CFP AOC, CDFP AOC and any parallel optical transceiver module AOC.

It supports Ethernet optical network, infinite broadband network, fibre channel network and other network types.











Quality Certifications

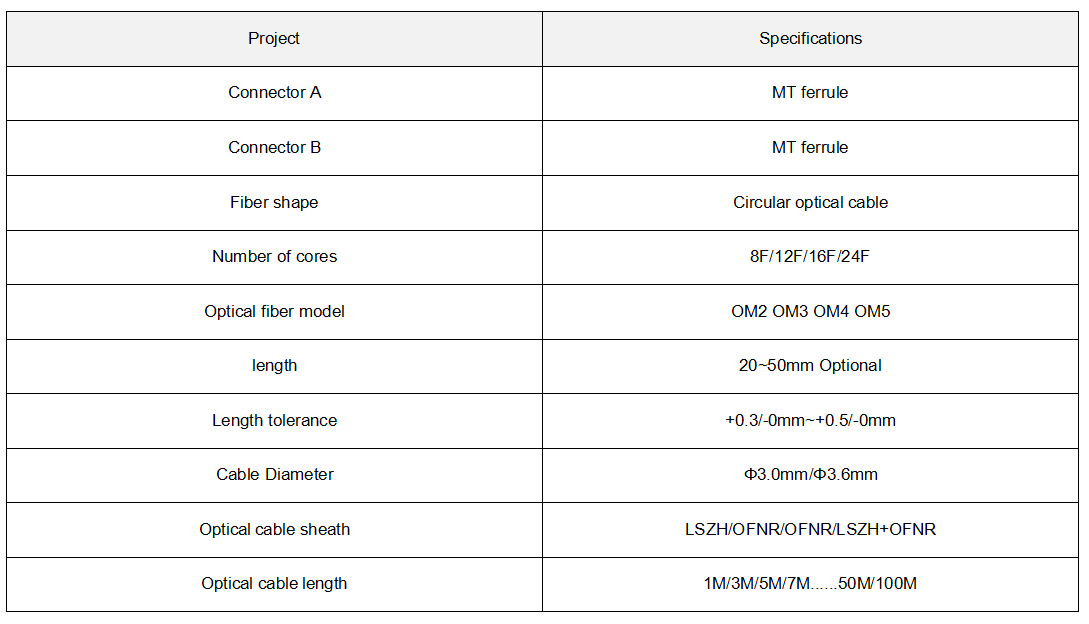

PRODUCT PARAMETERS


MT-MT AOC Assembly


MT-MT AOC Assembly
