UNIQFIBER MTP®/MPO Pre-terminated Multi-core Fiber Optic Patch Cord support direct connections between the distribution frame and equipment.It has an MTP® connector at one end and a simplex or duplex universal connector (LC, SC, etc.) at the other end.
OVERVIEW
Install it directly into the system device port or distribution frame;
With male or female joint at both ends of the choice;
2mm or 3mm reinforced bifurcated legs, length can be customized;
Mini core or Adventum cable can meet different needs;
Available 12/24/36/48/72/96 and 144 fiber optics;
Pull the eye design, to adapt to different installation environment;
High-precision factory terminations and factory-tested components;
In line with TIA/EIA and IEC standards.
Application Environment
Application of MPO/MTP®-LC Fiber Optic Patch Cord parallel optical link between PC card and chassis panel, link between O/E modules, optical switch frame link, gigabit Ethernet,
cable TV, video, active device or transceiver interface, building cabling, telecommunication network, multimedia, industrial & military applications, etc.
Quality Certifications

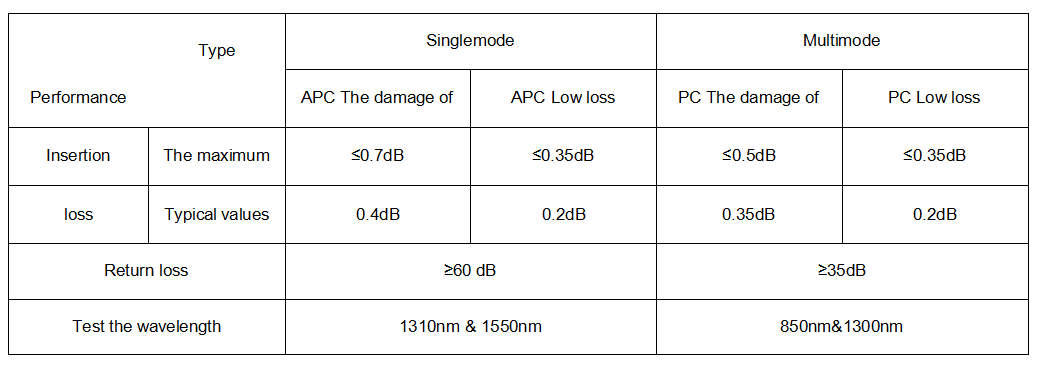

PRODUCT PARAMETERS
