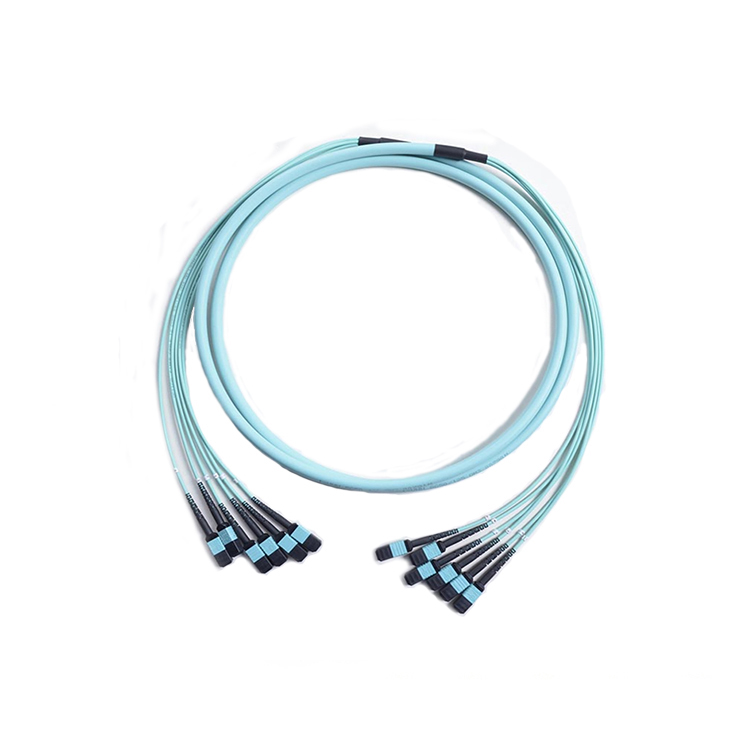

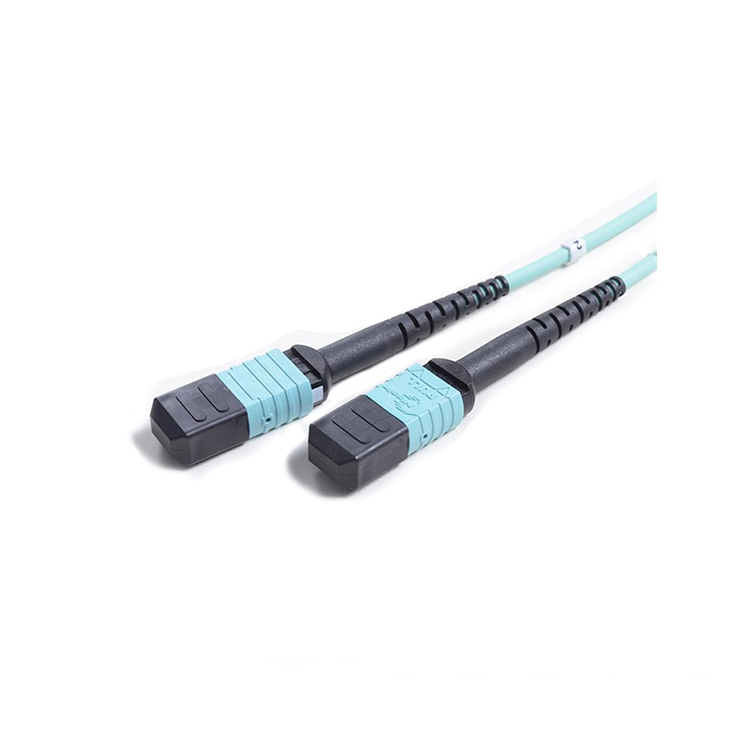

MTP®/ MPO fiber optic patch cord series trunk cable solutions offer an efficient way to quickly install large quantities of cable while providing high flexibility in unplugging and reuse, especially in areas requiring high density.
OVERVIEW
Used to distribute part or all of the optical fiber in the relay cable to other areas. Male or female plugs can be selected at both ends;
Use 12 fiber MTP® connector for terminal;
Round micro core or Kay installed cable to meet different installation requirements;
There are 12/24/36/48/72/96 and 144 types of fibers;
Pull eye design, suitable for different installation environment;
High-precision factory pre-termination and testing according to TIA/EIA and IEC standards.
Application Environment
Application of MPO/MTP® Fiber Optic Patch Cord parallel optical link between PC card and chassis panel, link between O/E modules, optical switch frame link, gigabit Ethernet, cable TV, video, active device or transceiver interface, building cabling, telecommunication network,multimedia, industrial and military applications, etc.
Quality Certifications
PRODUCT PARAMETERS
