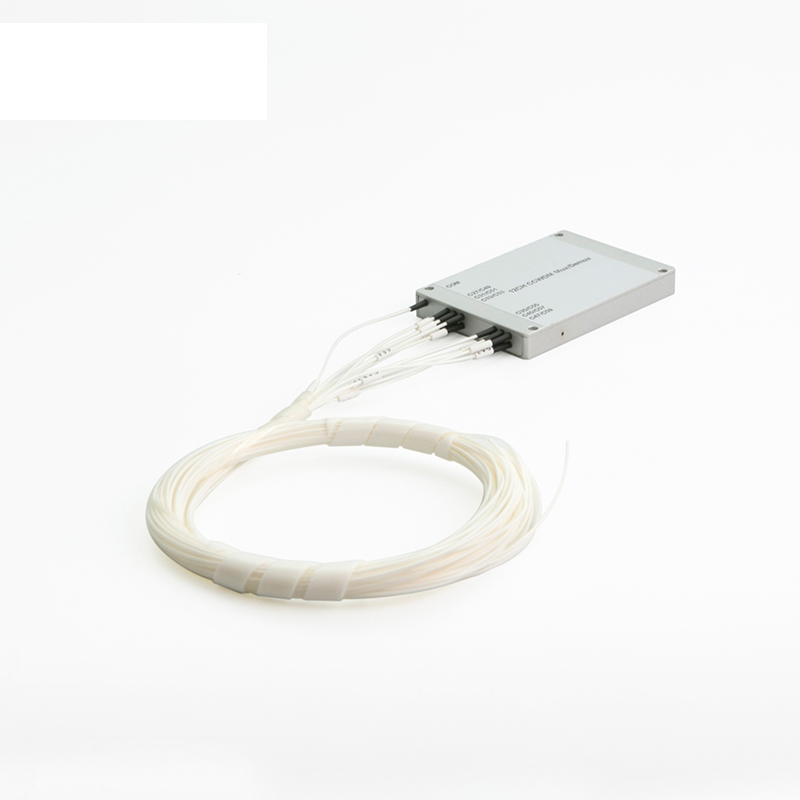

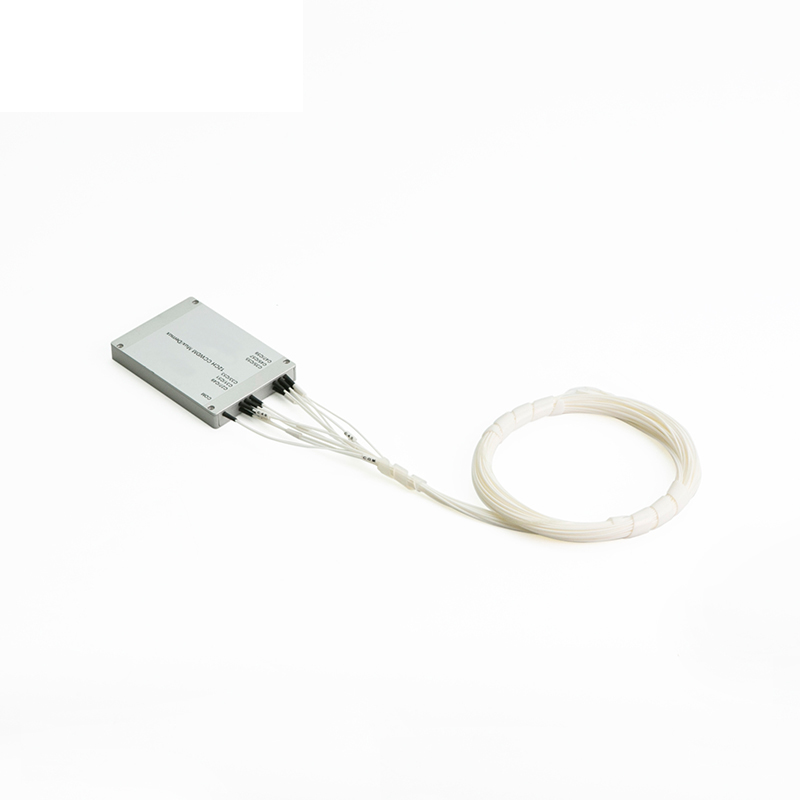

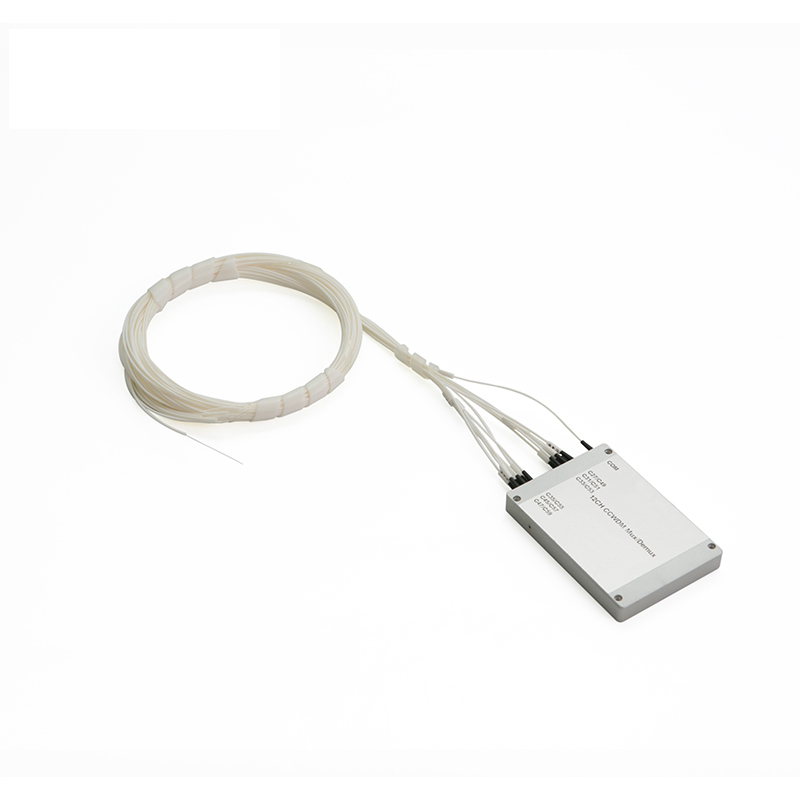

    12 Channel CCWDM Mini WDM
    12 Channel CCWDM Mini WDM
    12 Channel CCWDM Mini WDM
    12 Channel CCWDM Mini WDM
    ❤ Add to collection

  • 12 Channel CCWDM Mini WDM

    CCWDM wavelength division multiplexers can be used in 5G base station modules and multi-channel CWDM networks. Uniqfiber CCWDM modules have the advantage of small package size, which can be used in applications with special requirements for product

    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.00KG
Description

CCWDM wavelength division multiplexers can be used in 5G base station modules and multi-channel CWDM networks. Uniqfiber CCWDM modules have the advantage of small package size, which can be used in applications with special requirements for product


OVERVIEW

1. Compact design;

2. Low loss;

3. High isolation;

4. Low polarization loss;

5. High reliability and high stability;

6. Comply with Telcordia GR-1209-CORE standard;

7. Comply with Telcordia GR-1221-CORE standard;

8. Comply with RoHS-6 standard.











APPLICATION

The 12-channel CCWDM mini-type wavelength division multiplexer developed and produced by Shenzhen Uniqfiber Technology Co., Ltd. has good thermal stability. There is an aligner between the common end and each channel. The insertion loss of the product is low and the channel consistency is good.

Mini-wavelength division multiplexer (WDM) is a replacement for CWDM products. It can be used in telecommunication networks, metropolitan networks, broadband networks, PON (passive optical network) networks and cable TV links.











PRODUCT PARAMETERS
