  • 200G QSFP56 Transceiver

    Compatible QSFP56 Optical Transceiver Module is designed for 200GBASE Ethernet throughput over MTP/MPO-12 connectors using OM4 multimode fiber (MMF) with a wavelength of 850nm up to 100 meters.

    The transceiver is compliant with IEEE 802.3bs, 200GBASE-SR4, SFF-8636 & SFF-8665 standards. It is suitable for data centers, high performance computing networks, enterprise core and distribution layer applications.


    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.00KG
Description

Compatible QSFP56 Optical Transceiver Module is designed for 200GBASE Ethernet throughput over MTP/MPO-12 connectors using OM4 multimode fiber (MMF) with a wavelength of 850nm up to 100 meters.

The transceiver is compliant with IEEE 802.3bs, 200GBASE-SR4, SFF-8636 & SFF-8665 standards. It is suitable for data centers, high performance computing networks, enterprise core and distribution layer applications.


200G QSFP56 Transceiver

FEATURES

Hot-pluggable QSFP56,QSFP-DD form factor

4 channels full-duplex transceiver module

Data rate up to 103.125Gbps or 212.5Gbps

4x 53Gb/s 850nm VCSEL transmitter and PIN receiver

200GAUI-4 electrical interface

Reach up to 100m to 10km over MMF/SMF

Power consumption < 5W

MPO12/LC receptacle

CMIS V4.0 compliant

Built-in digital diagnostic functionality

Commercial operating case temperature range: 0°C to 70°C

Single 3.3V power supply

RoHS 6 compliant (lead-free)










APPLICATION





200G QSFP56 Transceiver

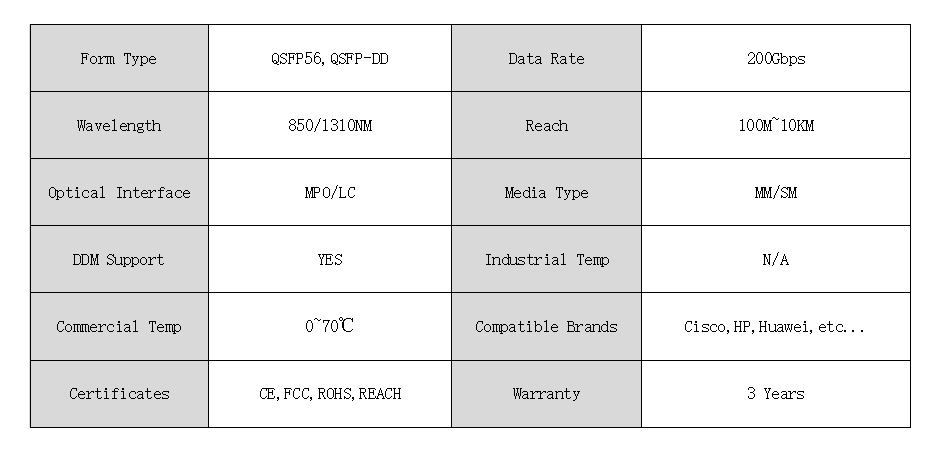

PRODUCT PARAMETERS



200G QSFP56 Transceiver
