Home ＞ Products ＞ 100G 1520-1620nm DWDM Dense Wavelength Division Multiplexer Module ABS Box
  • 100G 1520-1620nm DWDM Dense Wavelength Division Multiplexer Module ABS Box

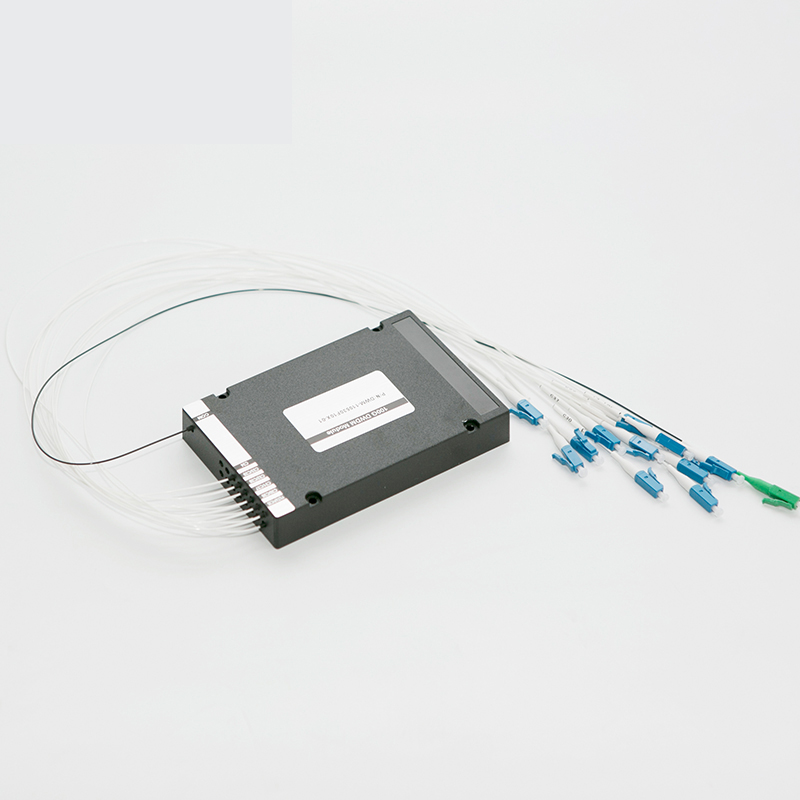

    100G 1520-1620nm DWDM Dense Wavelength Division Multiplexer Module ABS Box
    100G 1520-1620nm DWDM Dense Wavelength Division Multiplexer Module ABS Box
    ❤ Add to collection

  • 100G 1520-1620nm DWDM Dense Wavelength Division Multiplexer Module ABS Box

    UNIQFIBER specializes in the development and production of 100G 1520-1620nm DWDM dense wavelength division multiplexer modules for DWDM networks. The product design is based on TFF (Thin Film Filter) technology.

    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.00KG
Description

UNIQFIBER specializes in the development and production of 100G 1520-1620nm DWDM dense wavelength division multiplexer modules for DWDM networks. The product design is based on TFF (Thin Film Filter) technology.

100G 1520-1620nm DWDM Dense Wavelength Division Multiplexer Module ABC Box


1. Low loss;

2. High isolation;

3. Low polarization loss;

4. High reliability and high stability;

5. Comply with Telcordiagr-1209-core standard. Comply with Telcordiagr-1221-core standard.Comply with ROHS-6 standard.



100G 1520-1620nm DWDM Dense Wavelength Division Multiplexer Module ABC Box


UNIQFIBER specializes in the development and production of 100G 1520-1620nm DWDM dense wavelength division multiplexer module/ABC box for long-distance, high-capacity long-distance trunk network, or large-capacity metropolitan network core nodes.

100G 1520-1620nm DWDM Dense Wavelength Division Multiplexer Module ABC Box

parameterunitspecifications
Port configurationnm1*6         1*12        1*18
Center wavelengthnmITU、ITU+1
Channel spacingnm20
Channel bandwidthnmλc±6.5
Channel insertion lossdB≤2.0         ≤3.0          ≤3.5
Adjacent channel isolationdB≥30
Non-adjacent channel isolationdB≥40
Polarization dependent lossdB≤0.2
PMDps≤0.1
Return lossdB≥45
directionaldB≥50
The most powerfulmW≤300
Working temperature℃-5 to 75
Storage temperature℃-40 to 85
Fiber type－G657A1
Package sizemm

Insert box：130x100x24.5/130x100x50  ABS box：80x58x8/100x80x10                LGX box：standard/2 in/4 in 1              19-inch 1U The case：standard
