  • 800G OSFP Transceiver

    The 800G  QSFP-DD Optical Transceiver Module is designed for 800GBASE Ethernet throughput up to 500m over singlemode fiber (SMF) with MPO-16 connectors. This transceiver is compliant with IEEE P802.3ck, IEEE 802.3cu, QSFP-DD MSA. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 800G Ethernet, Data Center, Breakout 2x 400G DR4 or 8x 100G DR application.

    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.00KG
Description

The 800G  QSFP-DD Optical Transceiver Module is designed for 800GBASE Ethernet throughput up to 500m over singlemode fiber (SMF) with MPO-16 connectors. This transceiver is compliant with IEEE P802.3ck, IEEE 802.3cu, QSFP-DD MSA. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 800G Ethernet, Data Center, Breakout 2x 400G DR4 or 8x 100G DR application.

800G OSFP Transceiver

OVERVIEW

Hot-pluggable OSFP form factor

8 channels full-duplex transceiver module

Data rate up to 850Gbps

Compliant with OSFP MSA and 800GBASE Ethernet

Reach up to 500m-2km over SMF with FEC

Built-in digital diagnostic functions

Power consumption < 16W

Commercial operating case temperature range: 0℃ to 70℃

3.3V power supply voltage

RoHS compliant (lead free)

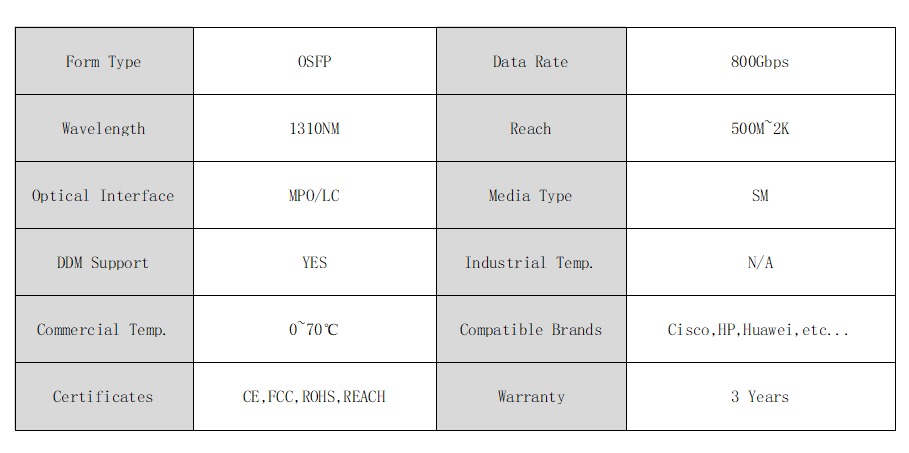

PRODUCT PARAMETERS


800G OSFP Transceiver
