LC-SC/UPC 4-8 Core Pre-terminated Fiber Optic Patch Cord Singlemode Duplex PVC/LSZH

OVERVIEW

1,The products are made of imported ceramic thief inserts and imported high-quality optical fiber cables;

2,The introduction of foreign advanced grinding technology and grinding equipment, effectively ensure that the center of the fiber grinding offset, fiber concave, fiber surface without scratches and defects, the size of the curvature radius of the ceramic end face number of parameters in line with the standard provisions;

3,Small insertion loss, large return loss, good interchange performance, excellent performance of repeated insertion and extraction, easy to use;

4,According to customer requirements to provide a full set of customized services;

5,All components have been optically tested and are in line with RoHS standards;

6,Comply with ANSI/TIA/EIA and ISO/IEC requirements for durability, moisture resistance, coupling stress, fiber tensile force and adaptability to harsh environment such as humidity, extreme temperature, plug and pull force and cable tensile stress, impact and vibration;

7,Operating Temperature (-40℃~+75℃), Storage Temperature (-40℃~+85℃).

APPLICATION

The 4-8 core LC-SC Pre-terminated Singlemode Fiber Optic Patch Cord developed by JSXSolutions is suitable for long-distance, high-bandwidth data transmission and cabling environments where low loss is required.Therefore, single-mode fiber is widely used in communication networks, high-speed metropolitan access networks, and networks that support high-speed video, data and voice services.

Quality Certifications

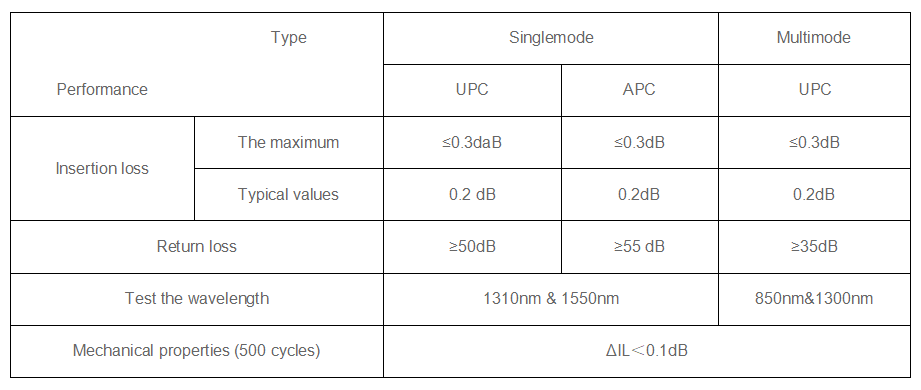

PRODUCT PARAMETERS
