  • MT-MT Assembly

    UNIQFIBER MT-MT devices are used in QSFP, QSFP+, QSFP28, 100GPSM4, QSFP-DD, Micro, OSFP, CXP, CFP, CDFP, and other parallel transmission optical transceiver modules.

    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.00KG
Description

UNIQFIBER MT-MT devices are used in QSFP, QSFP+, QSFP28, 100GPSM4, QSFP-DD, Micro, OSFP, CXP, CFP, CDFP, and other parallel transmission optical transceiver modules.





MT-MT Assembly


OVERVIEW

1. Compatible with gr-1435 and gr-1221;

2. Transmission mode: multi-channel parallel optical connection;

3. Support: 40g (4x10g), 100g (4x25g), 4x32g, 200g (8x25g), 800g (8x100g).

Coupling mode: passive coupling between MT and MT at 0 ° and 8 ° through guide pin

Insertion loss return loss parameters: MT insertion loss ≤ 0.60db, typical insertion loss 0.20db, MT return loss ≥ 20dB

Applicable environment: - 40 ℃ ~ + 85 ℃.











Application Environment

The products are applied to qsfp, qsfp +, qsfp28, 100gpsm4, qsfp-dd, micro, OSFP, CXP, CFP, CDFP and other parallel transmission optical transceiver modules, and support OEM / ODM matching for internal micro connection applications of various types of optical modules above 200G.











Quality Certifications

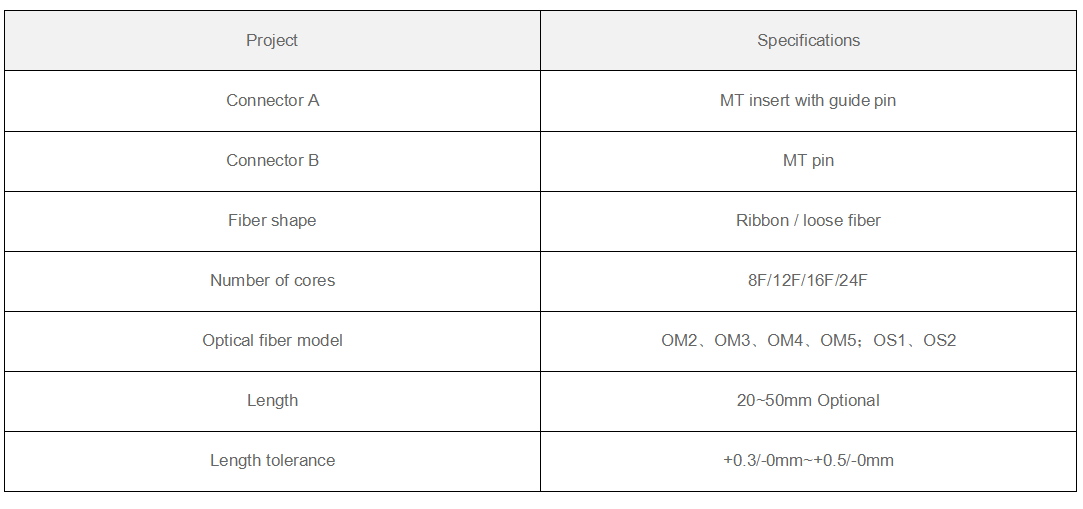

PRODUCT PARAMETERS

MT-MT Assembly
